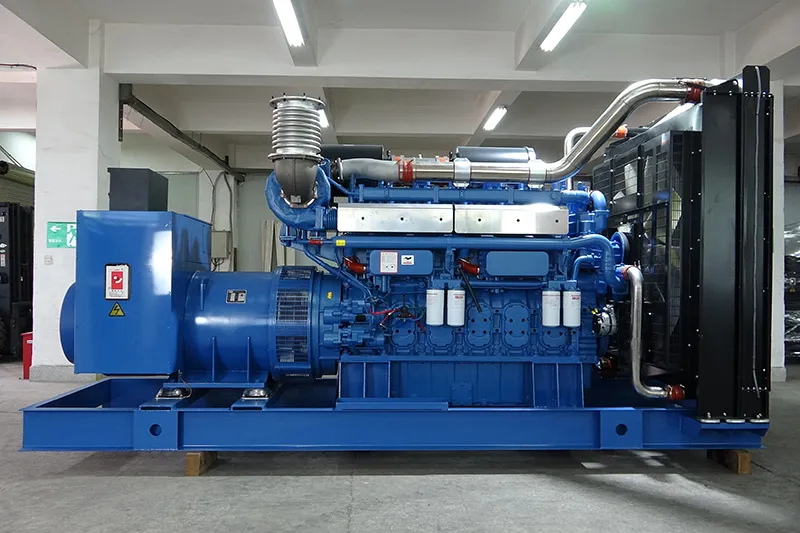

    High Voltage Diesel Generators

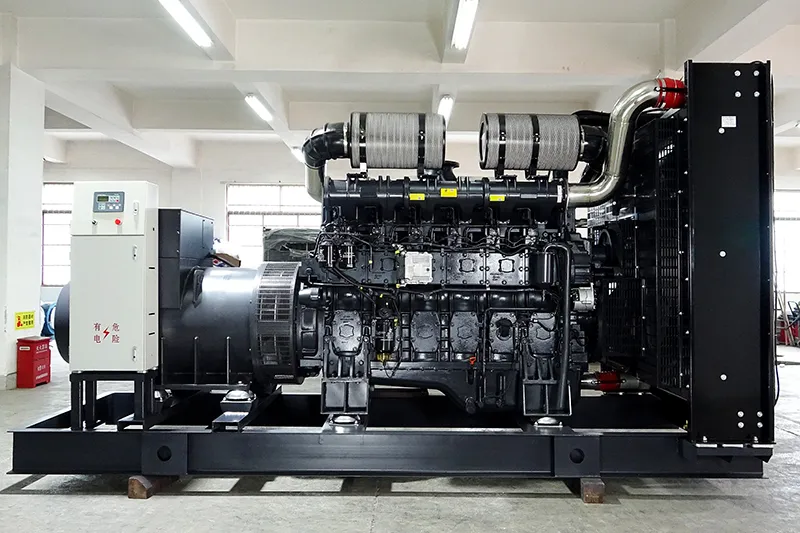

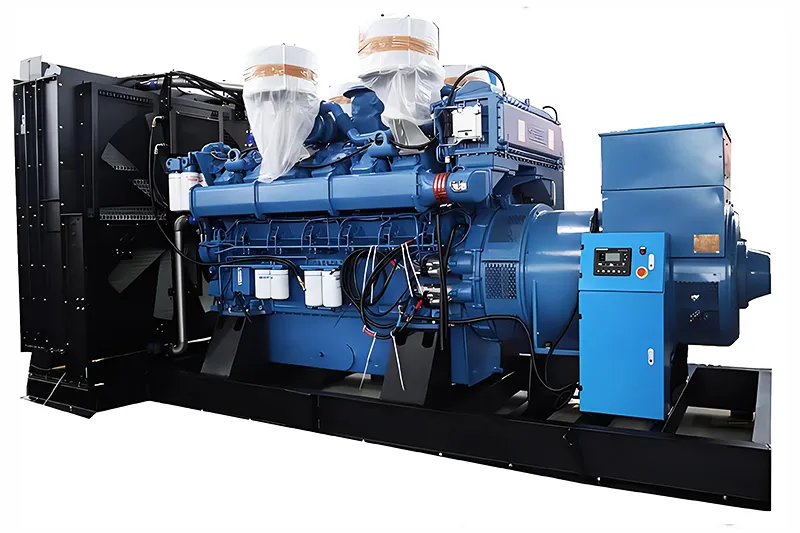

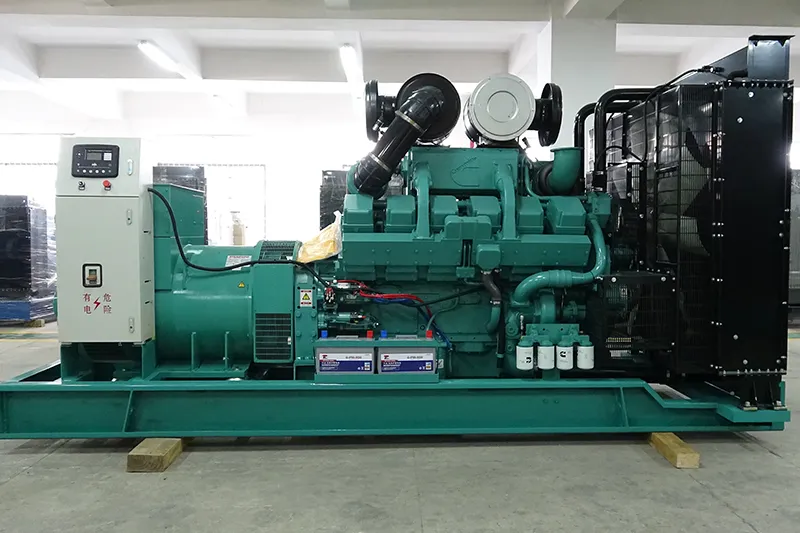

    DINGBO Power's high voltage diesel generators are engineered for robust performance, featuring large capacities ideal for long-distance power supply. These generators are well-suited for demanding applications such as in metallurgy, industrial sectors, data centers, airports, and ports, where high reliability and superior performance are crucial.

    Request a Quote
    Key Specs
    • Power Range: 1000kVA to 3750kVA (800kW to 3000kW)
    • Voltage Options: Typically 6.3kV, 10kV, 10.5kV, 11kV
    • Engine Options: Includes industry leaders such as Cummins, Yuchai, Baudouin, Weichai, and MTU
    • Alternator Choices: Marathon, Engga, Leroy Somer, Stamford
    Features
    • Superior Dynamic Performance: Ensures minimal voltage waveform distortion and high voltage regulation accuracy.
    • Efficient Power Distribution: Structured to support long-distance and high-capacity power distribution efficiently.
    • Operational Efficiency and Longevity: High efficiency and durability extend the lifespan under continuous operation.
    • Grid Connection: Excellent grid-connected functionality ensures reliable integration with existing power systems.
    • Customization: Available in both open skid and containerized configurations to meet specific operational requirements.
    Selection table
    Genset Model Diesel Generator Set Dimension
    Prime Power Standby Power L x W x H( mm )
    kW kVA kW kVA
    DB-800GF 800 1000 880 1100 ISO 20ft GP
    DB-900GF 900 1125 1000 1250 ISO 20ft GP
    DB-1000GF 1000 1250 1100 1375 ISO 20ft GP
    DB-1100GF 1100 1375 1200 1500 ISO 40ft HQ
    DB-1200GF 1200 1500 1320 1650 ISO 40ft HQ
    DB-1500GF 1500 1875 1650 2063 ISO 40ft HQ
    DB-1600GF 1600 2000 1760 2200 ISO 40ft HQ
    DB-1800GF 1800 2250 1980 2475 ISO 40ft HQ
    DB-2000GF 2000 2500 2200 2750 ISO 40ft HQ
    DB-2200GF 2200 2750 2420 3025 ISO 40ft HQ
    DB-2400GF 2400 3000 2640 3300 ISO 40ft HQ
    DB-2500GF 2500 3125 2750 3437.5 ISO 40ft HQ
    DB-2600GF 2600 3250 2860 3575 ISO 40ft HQ

    contact us for more product information.
    FAQs

    A high voltage diesel generator is a diesel-powered unit that produces electricity at a much higher voltage compared to standard generators. These generators are typically used in heavy-duty industrial applications where large power demands require higher voltage levels, ensuring efficient distribution and performance.

    Industrial generators are generally classified into three main voltage categories:

    • Low voltage (240-600 volts): Typically used for smaller motors, general power needs, and localized applications.
    • Medium voltage (1,000-35,000 volts): Suitable for large industrial motors, high power demands, and efficient power distribution across industrial settings.
    • High voltage (above 35,000 volts): Used for power transmission, utility grids, and large-scale infrastructure projects.

    • Large industrial facilities like factories, manufacturing plants, and data centers with substantial power requirements.
    • Critical infrastructure backup power systems where a high voltage supply is essential for uninterrupted operation.
    • Remote locations lacking grid power but requiring significant power output for operations.

    The lifespan of a generator is affected by factors such as voltage load, operating conditions, maintenance frequency, and cooling systems. High voltage levels can lead to increased wear on insulation and components, while lower voltages may cause inefficiencies if the generator is mismatched to the load. Regular maintenance is essential to ensure the longevity and efficiency of the generator at any voltage level.
