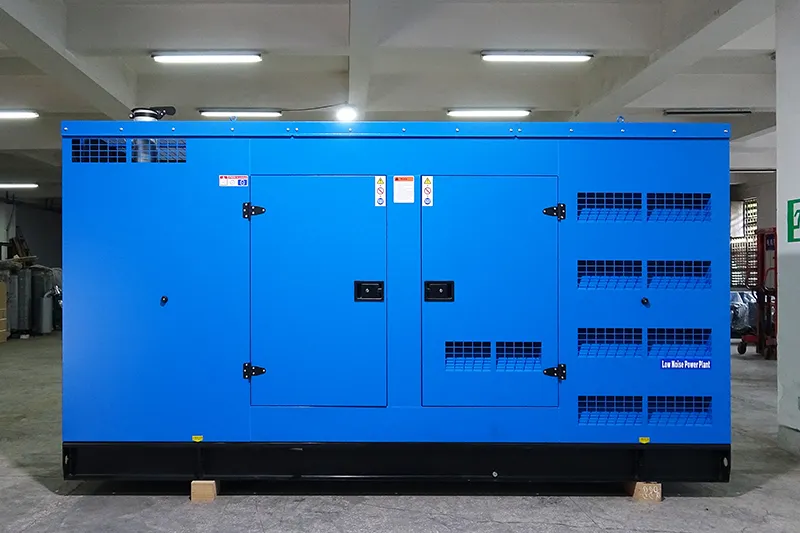

    Silent Diesel Generators

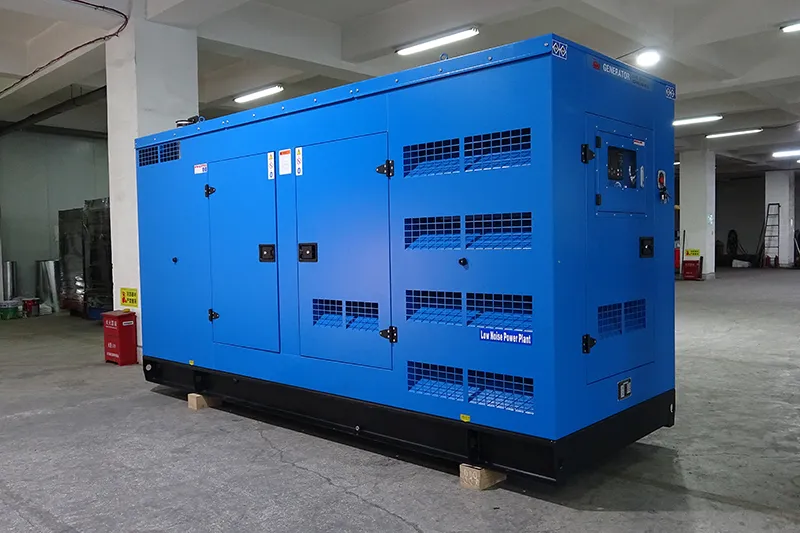

    DINGBO Power's silent diesel generator sets incorporate state-of-the-art noise reduction technologies, including vibration isolation, sound reduction, sound insulation, and sound absorption, achieving noise levels below 80 decibels (dB). These generators are engineered for reliability, low emissions, efficient fuel consumption, and stable performance. They are ideally suited for environments with strict noise regulations such as factories, communication centers, hotels, educational institutions, hospitals, office buildings, and industrial sites.

    Request a Quote
    Key Specs
    • Power Range: 20kVA to 625kVA (16kW to 500kW)
    • Frequency Options: 50Hz or 60Hz
    • Voltage Options: 220V to 480V, customizable to specific requirements
    • Engine Choices: Includes premium brands like Cummins, Perkins, Volvo, SDEC, Yuchai, Weichai, MTU
    • Alternator Options: Stamford, Leroy Somer, Engga, Marathon
    • Control Systems: Deep-Sea/SmartGen controllers
    Features
    • Construction: Silencer box made from 2mm galvanized sheet, plastic-sprayed for rust resistance and durable paint finish.
    • Corrosion and Fire Resistance: Treated through stringent pickling and phosphating, with multi-layer paint for enhanced protection.
    • Maintenance Features: Includes oil and fuel drains for easy waste management.
    • Fuel Storage: Built-in fuel tank with a duration of 8 to 12 hours operation, equipped with a fuel gauge.
    • Accessibility: Dual access doors for easy maintenance and troubleshooting.
    • Sound Absorption: High-density flame-retardant and quality sound-absorbing cotton interior for effective noise reduction.
    • Exhaust System: Insulated to minimize noise, with specific decibel levels customizable upon request.
    • Safety and Observation: Features a controller observation window and an emergency stop button for quick shutdown in emergencies.
    • Environmental Protection: Designed to withstand harsh outdoor conditions, with features for noise, rain, and dust resistance.
    • Optimized Design: Enhanced airflow and ambient temperature control ensure optimal performance even at full capacity and emergency standby levels.
    Product Details

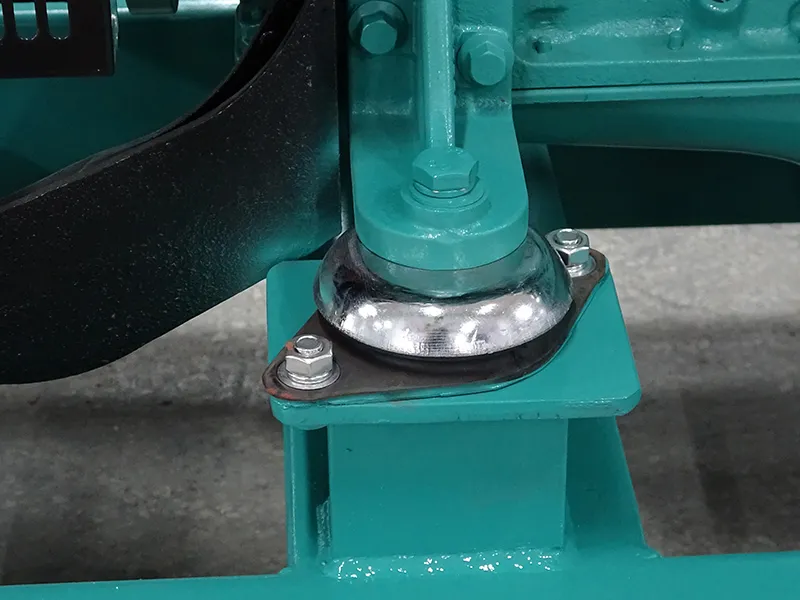

    • Vibration absorber
      Vibration absorber

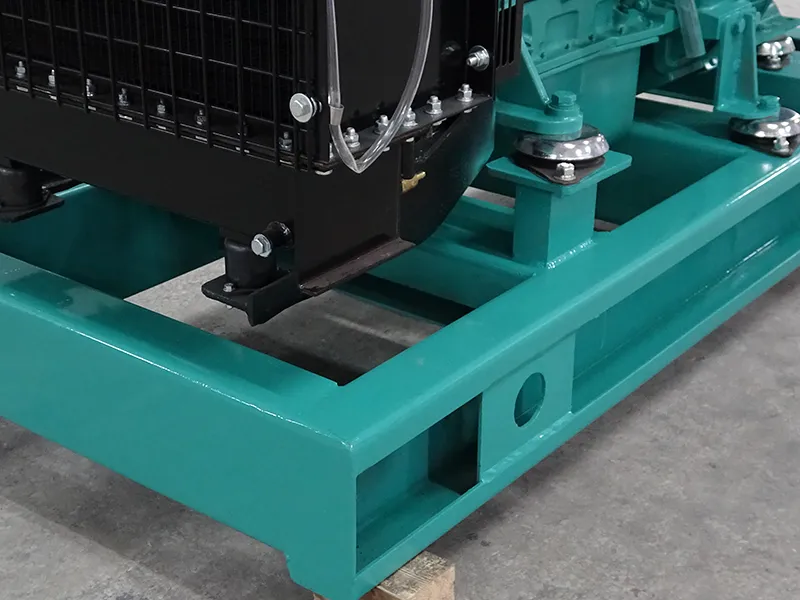

    • Steel base frame
      Steel base frame

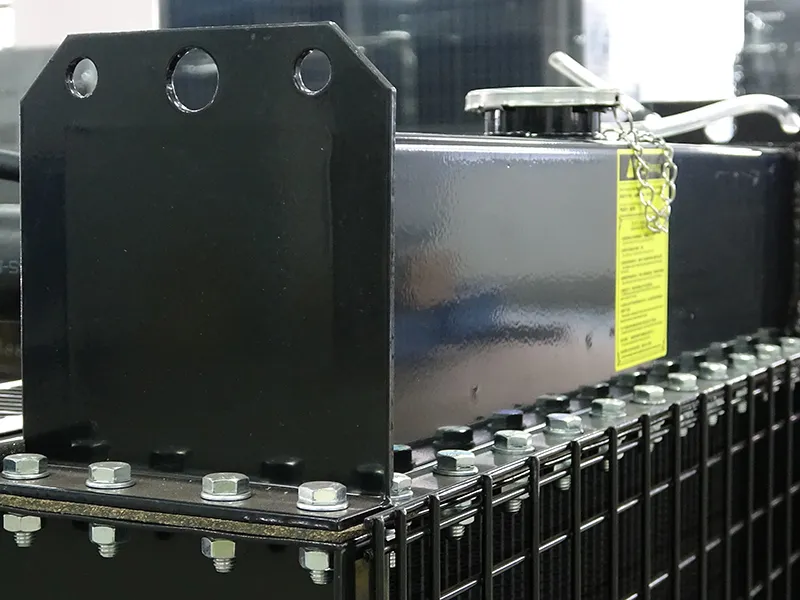

    • Radiator filling port
      Radiator filling port

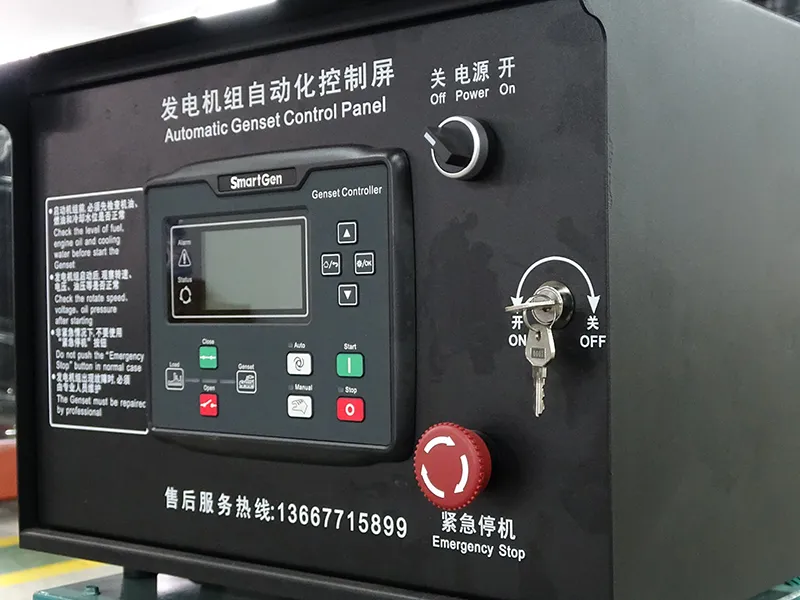

    • Auto Controller
      Auto Controller

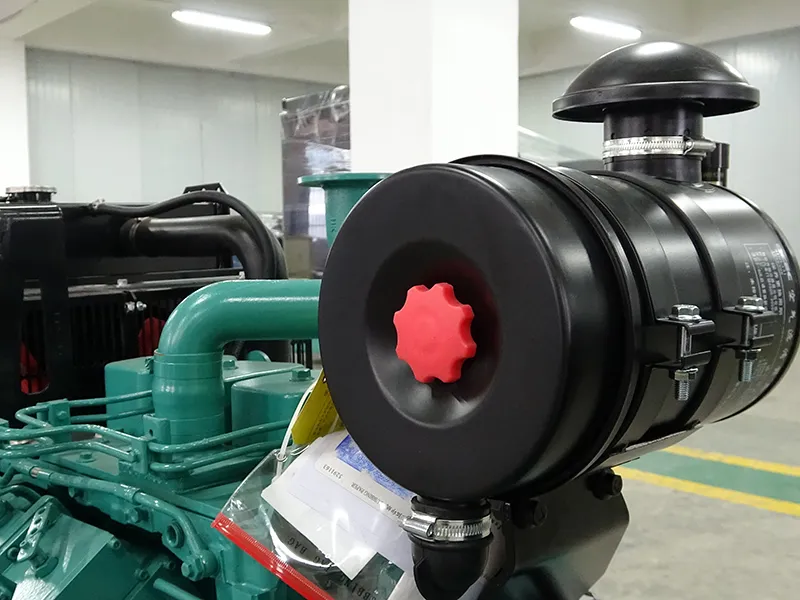

    • Air filter
      Air filter

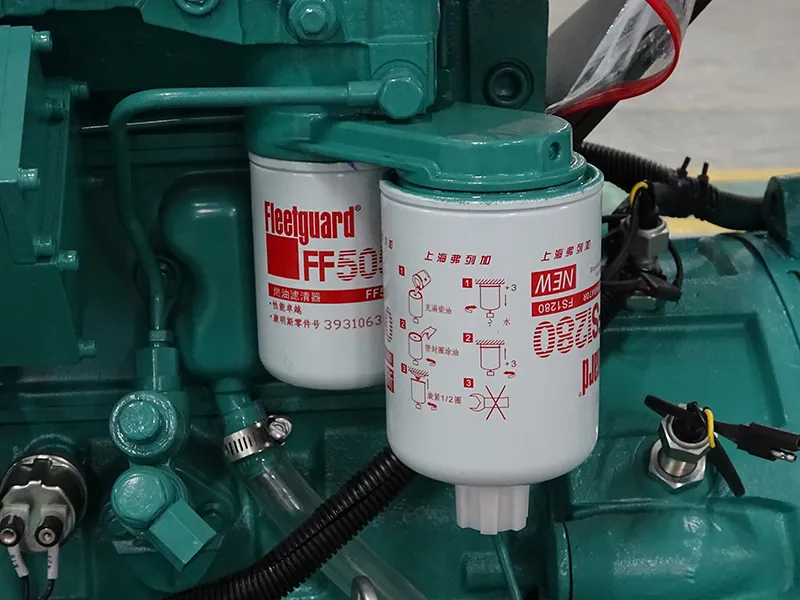

    • Fuel filter
      Fuel filter
    • Oil filter
      Oil filter

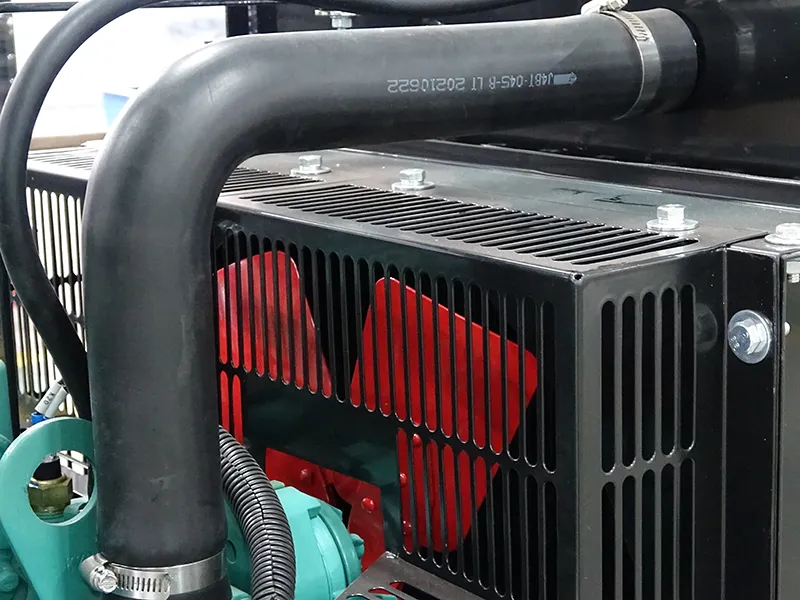

    • With fan safety shield
      With fan safety shield

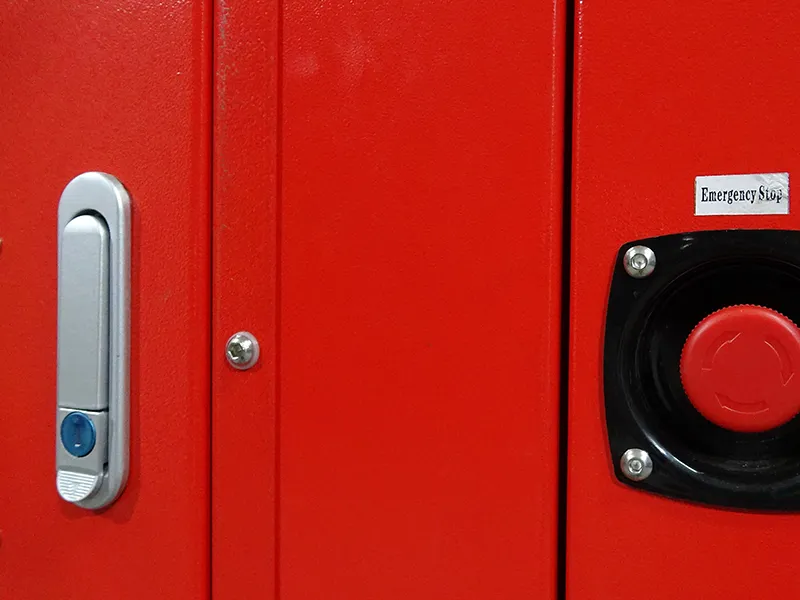

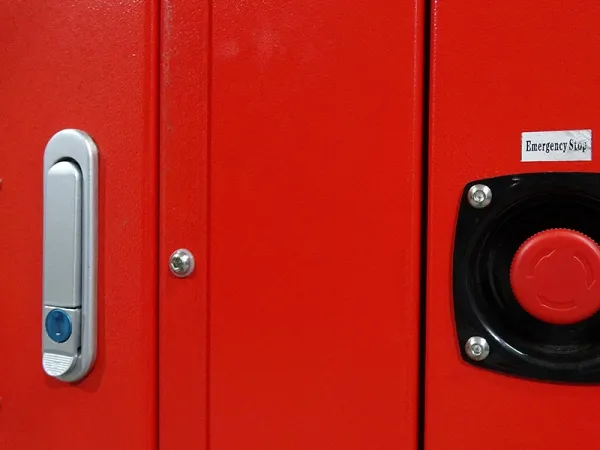

    • Emergency stop
      Emergency stop

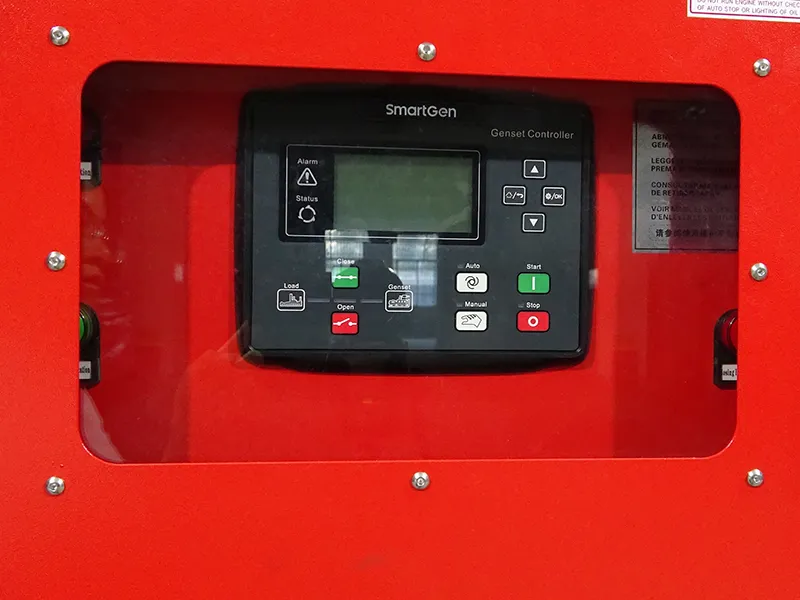

    • Visual window for controller
      Visual window for controller

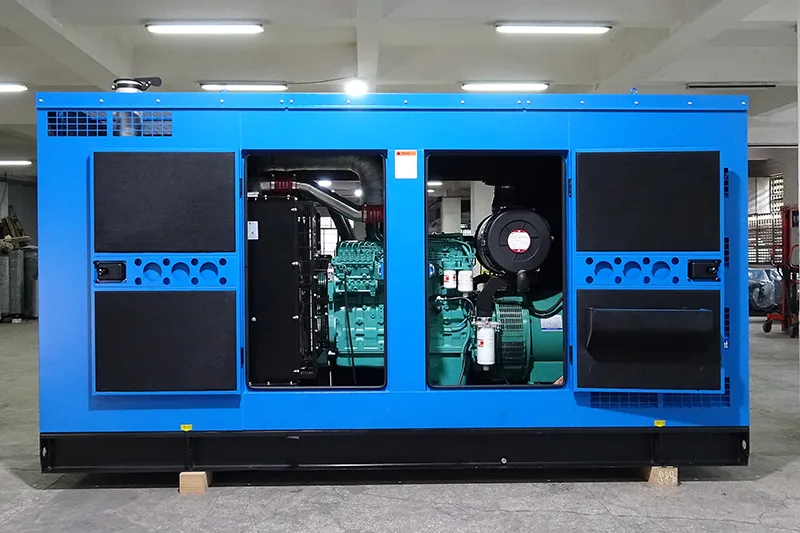

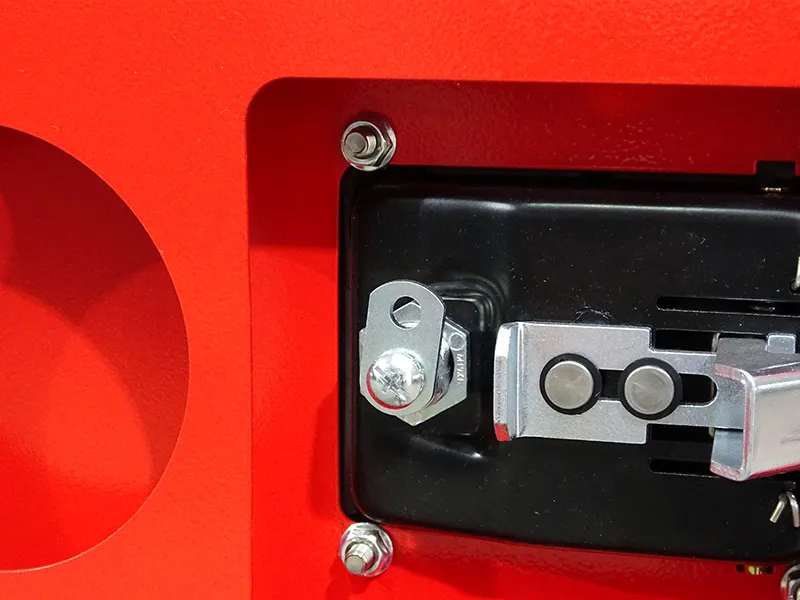

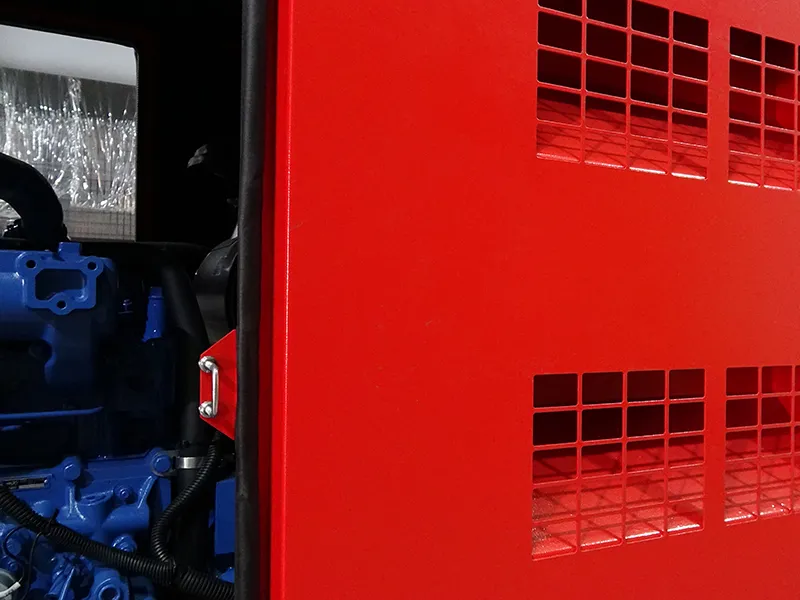

    • Lockable maintenance door
      Lockable maintenance door

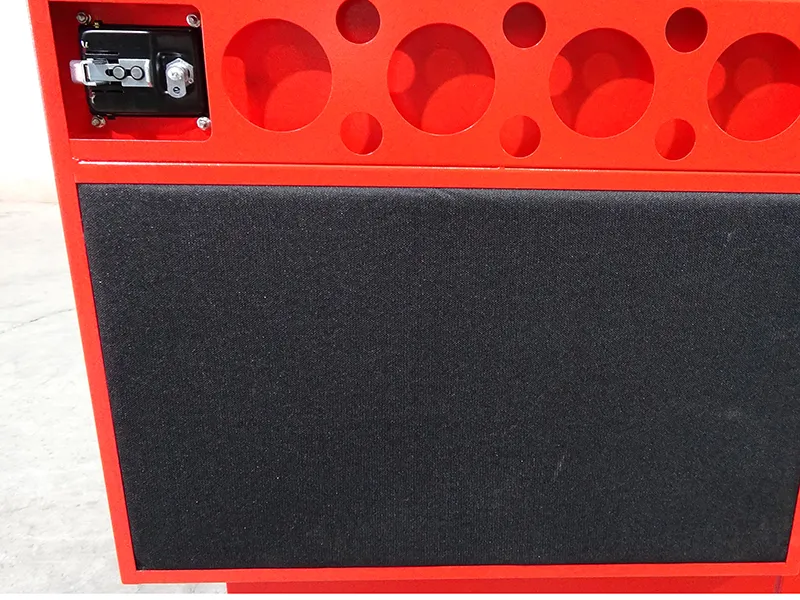

    • Effective sound-absorbing cotton
      Effective sound-absorbing cotton

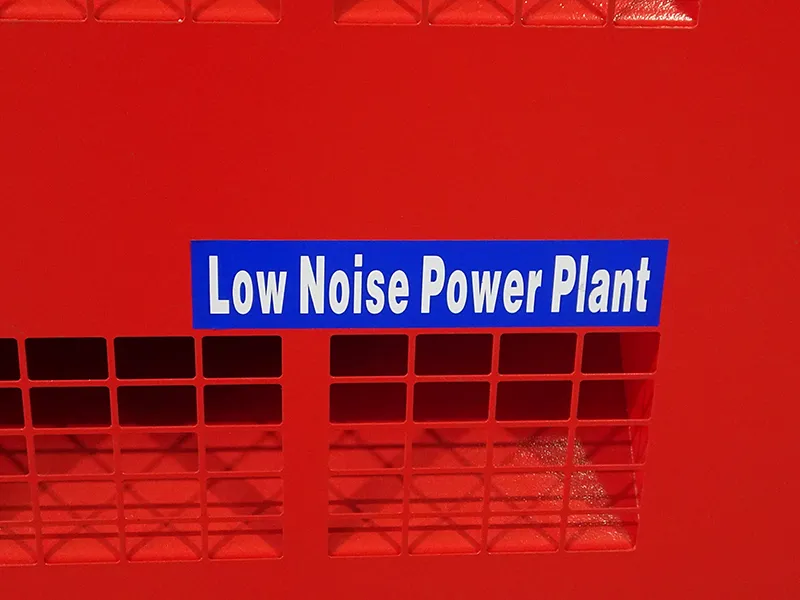

    • Air inlet and outlet system to ensure genset's stable running
      Air inlet and outlet system to ensure genset's stable running

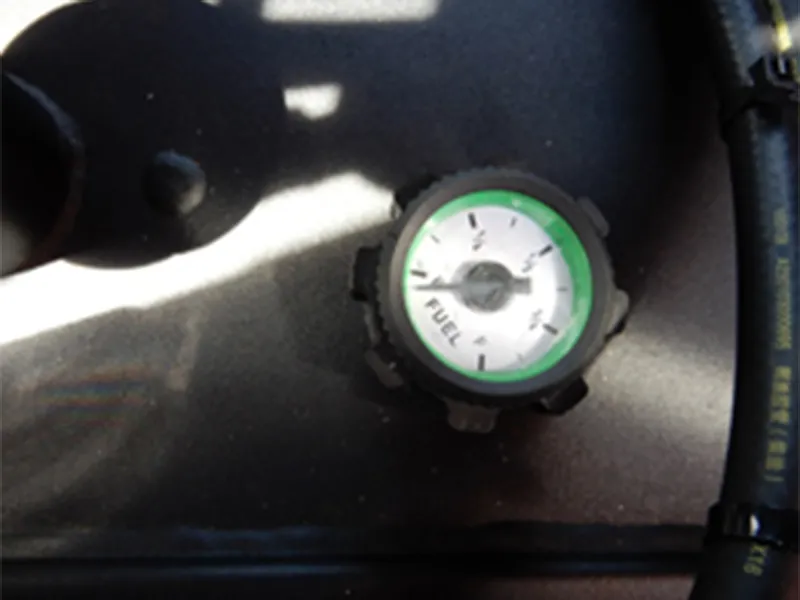

    • Fuel gauge
      Fuel gauge
    • 2mm thick galvanized canopy
      2mm thick galvanized canopy

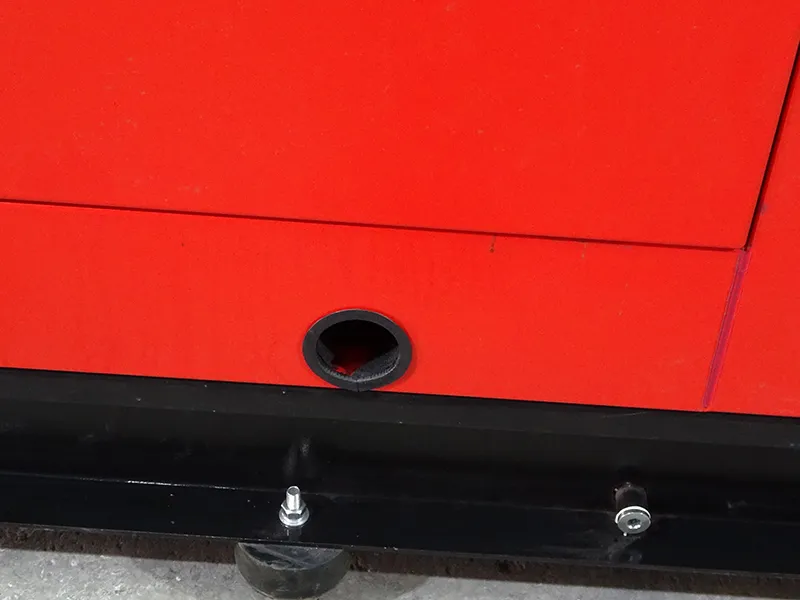

    • Oil drain outlet
      Oil drain outlet
    Selection table
    Genset Model Diesel Generator Set Dimension
    Prime Power Standby Power L x W x H( mm )
    kW kVA kW kVA
    DB-16GF 16 20 17 22 2200×940×1530
    DB-20GF 20 25 22 27.5 2200×940×1530
    DB-22GF 22 28 28 35 2200×940×1530
    DB-25GF 25 31 28 35 2200×940×1530
    DB-30GF 30 38 33 41 2200×940×1530
    DB-30GF 30 38 33 41 2200×940×1530
    DB-50GF 50 63 55 69 2400×1000×1600
    DB-60GF 60 75 66 83 2700×1240×1790
    DB-64GF 64 80 70.4 88 2700×1240×1790
    DB-70GF 70 88 77 96 2700×1240×1790
    DB-75GF 75 94 82.5 103 2700×1240×1790
    DB-75GF 75 94 82.5 103 2700×1240×1790
    DB-90GF 80 100 88 110 2700×1240×1790
    DB-100GF 100 125 110 138 2800×1240×1790
    DB-110GF 110 138 120 150 2800×1240×1790
    DB-120GF 120 150 132 165 2800×1240×1790
    DB-140GF 140 175 154 193 3000×1240×1790
    DB-150GF 150 188 165 206 3000×1240×1790
    DB-160GF 160 200 176 220 3000×1240×1790
    DB-180GF 180 225 200 250 3300×1400×1930
    DB-200GF 200 250 220 275 3300×1400×1930
    DB-220GF 220 275 242 303 3300×1400×1930
    DB-250GF 250 313 275 344 4000×1600×2150
    DB-300GF 300 375 330 413 4000×1600×2150
    DB-330GF 330 413 360 450 4000×1600×2150
    DB-350GF 350 438 385 481 4300×1700×2350
    DB-360GF 360 450 396 495 4300×1700×2350
    DB-380GF 380 475 420 525 4300×1700×2350
    DB-400GF 400 500 440 550 4300×1700×2450
    DB-430GF 430 538 470 588 4700×1800×2450
    DB-450GF 450 563 500 625 4700×1800×2450
    DB-470GF 470 588 520 650 4700×1900×2450
    DB-480GF 480 600 530 663 4700×1900×2450
    DB-500GF 500 625 550 688 4900×2000×2600
    DB-520GF 520 650 570 713 5000×2000×2600
    DB-550GF 550 688 600 750 5000×000×2600

    Contact us for more product information.
    FAQs

    Our silent diesel generator sets are designed to not exceed 75 dB at a distance of 7 meters. Customization options are available to further reduce noise levels based on customer requirements and specific product conditions.

    The main distinction between open type and silent type diesel generators lies in their construction. Silent gensets are equipped with sound insulation covers and built-in silencers, significantly reducing noise output, making them suitable for environments where noise reduction is critical.

    Silent generator sets offer specific benefits suitable for various environments:

    • Noise Reduction: Uses silencing technology to significantly lower noise output, making it suitable for residential or noise-sensitive areas.
    • Protection and Durability: Enclosures provide dust and water resistance, enhancing the unit's durability. Compact Design: Their design allows for flexibility in installation and location.

    No, it will not. Firstly, the soundproof enclosure has louvered structures to ensure timely heat dissipation from the diesel generator set. Secondly, the enclosure is also equipped with multiple air inlets to ensure ventilation and heat dissipation for the unit. Therefore, it basically will not affect the normal heat dissipation of the diesel generator set. Moreover, adding a soundproof enclosure to the diesel generator set not only provides dust prevention and noise reduction but also enhances the aesthetic appeal and allows the generator to be used in a wider range of environments.
