    Trailer Mounted Diesel Generators

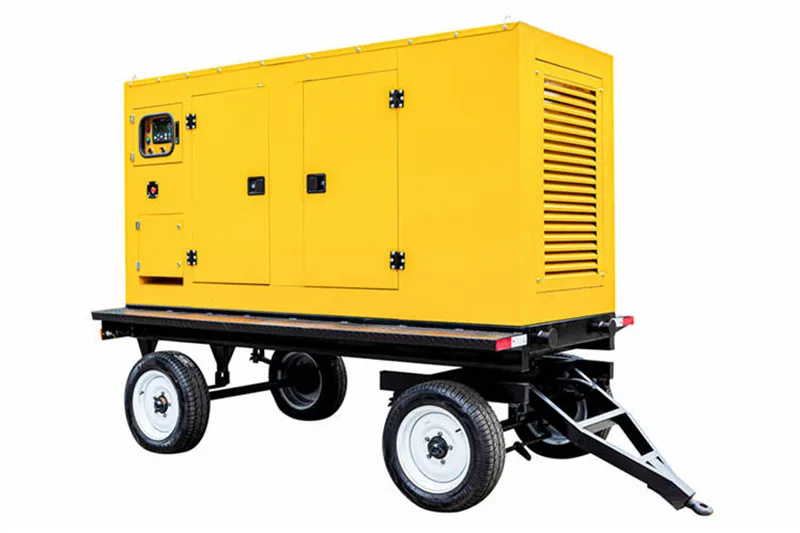

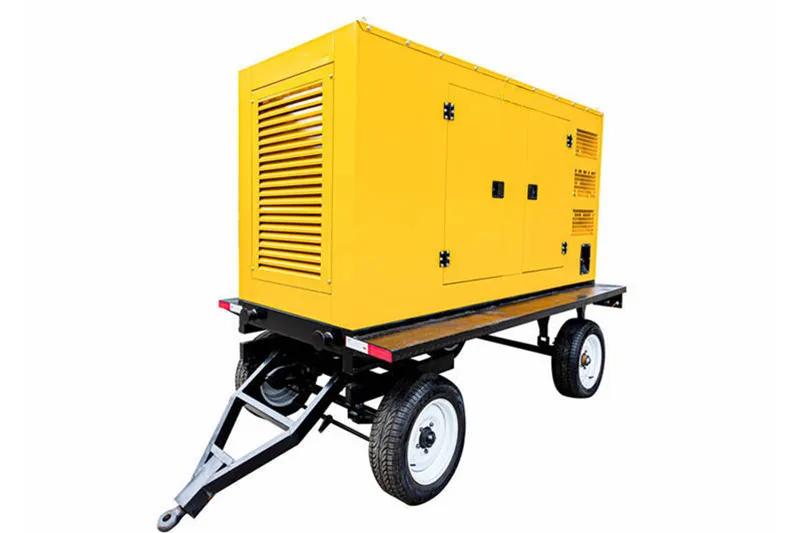

    DINGBO Power’s trailer-mounted diesel generators, also known as mobile power stations, are designed for versatility and mobility, suitable for providing emergency power or operational power in remote areas. These units are engineered with a low center of gravity for stability and feature advanced safety measures for highway compliance.

    Request a Quote
    Key Specs
    • Power Range: 20kVA to 725kVA (16kW to 600kW)
    • Frequency Options: 50Hz or 60Hz
    • Voltage Options: 220V to 480V, customizable to meet specific needs
    • Engine Choices: Includes top brands such as Cummins, Perkins, Volvo, Weichai, Yuchai, SDEC, MTU
    • Alternator Choices: Stamford, Leroy Somer, Engga, Marathon
    • Control System: Deep-Sea or SmartGen controllers
    Features
    • Mobility and Flexibility: The trailer features an adjustable bolt-type towing frame and a 360° turntable for flexible steering, accommodating various tractor heights and ensuring high maneuverability.
    • Safety Features: Equipped with mechanical support devices, mechanical handbrake, and air brakes linked to the trailer, along with a reliable air brake interface and a winch brake system to ensure driving safety.
    • Operational Efficiency: The set includes a maintenance platform on three sides, easy-access pedals at the tail, and mechanical support for stability, coupled with a silencer box option for reduced noise.
    • Aesthetics and Customization: The generator’s housing is finished with durable polymer polyurethane paint, available in various colors, and features a uniquely designed lower exhaust to enhance appearance and functionality.
    • Spacious and Customizable Interior: The trunk is tailored to generator size, providing ample space for operators to move around freely, which simplifies operations and maintenance tasks.
    Selection table
    Genset Model Diesel Generator Set Dimension
    Prime Power Standby Power L x W x H (mm)
    kW kVA kW kVA
    DB-16GF 16 20 17 22 2200x1600x2300
    DB-20GF 20 25 22 27.5 2200x1600x2300
    DB-22GF 22 28 28 35 2200x1600x2300
    DB-25GF 25 31 28 35 2200x1600x2300
    DB-30GF 30 38 33 41 2200x1600x2300
    DB-30GF 30 38 33 41 2200x1600x2300
    DB-50GF 50 63 55 69 2400×1600×2400
    DB-60GF 60 75 66 83 2400×1600×2400
    DB-64GF 64 80 70.4 88 2700×1700×2700
    DB-70GF 70 88 77 96 3000×1700×2700
    DB-75GF 75 94 82.5 103 3000×1700×2700
    DB-75GF 75 94 82.5 103 3000×1700×2700
    DB-90GF 80 100 88 110 3000×1700×2700
    DB-100GF 100 125 110 138 3000×1700×2700
    DB-110GF 110 138 120 150 3000×1700×2700
    DB-120GF 120 150 132 165 3000×1700×2700
    DB-140GF 140 175 154 193 3000×1700×2700
    DB-150GF 150 188 165 206 3300×1700×2850
    DB-160GF 160 200 176 220 3300×1700×2850
    DB-180GF 180 225 200 250 3300×1700×2850
    DB-200GF 200 250 220 275 3700×2100×3100
    DB-220GF 220 275 242 303 3700×2100×3100
    DB-250GF 250 313 275 344 3700×2100×3100
    DB-300GF 300 375 330 413 4000×2100×3100
    DB-330GF 330 413 360 450 4000×2100×3100
    DB-350GF 350 438 385 481 4300×2200×3300
    DB-360GF 360 450 396 495 4300×2200×3300
    DB-380GF 380 475 420 525 4300×2200×3300
    DB-400GF 400 500 440 550 4700×2200×3400
    DB-430GF 430 538 470 588 4700×2200×3400
    DB-450GF 450 563 500 625 4700×2200×3400
    DB-470GF 470 588 520 650 4700×2200×3400
    DB-480GF 480 600 530 663 4700×2200×3400
    DB-500GF 500 625 550 688 4700×2200×3400
    DB-520GF 520 650 570 713 4700×2200×3400
    DB-550GF 550 688 600 750 4700×2200×3400
    DB-600GF 600 725 660 825 4900×2400×3600

    contact us for more details.
    FAQs

    A trailer-mounted diesel generator is a portable power generation unit designed for temporary locations requiring electricity. It offers advantages in mobility, speed, and convenience, making it essential for industries with temporary power needs. Common applications include outdoor concerts, emergency rescue operations, construction projects, and more.

    Our trailer-mounted diesel generators come in a variety of power options, typically ranging from 16kW to 600kW. Based on your specific power needs, we can help you choose the right generator model to ensure it can support all of your equipment, including starting currents.

    The main advantage of a mobile trailer diesel generator is its mobility. Unlike stationary diesel generators, this generator can be easily moved to different locations where temporary power is required. The entire generator set can be transported without the need for forklifts, trailers, or other heavy machinery.
    From an economic perspective, using a mobile trailer generator helps reduce costs associated with forklifts, trucks, trailers, and labor. There’s no need to hire specialized technicians for disassembling, transporting, or installing the generator, as it can be moved and set up quickly and easily.
